Inscribed and Circumscribed Polygons - Lesson 10-7
Today we learned about inscribed and circumscribed polygons. We started by defining them:

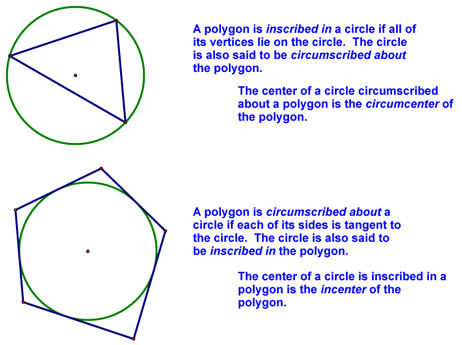

![Definition of Inscribed and Circumscribed Polygons](InscribedCircumscribedPolygons.gif)
We then learned a couple of properties regarding them:

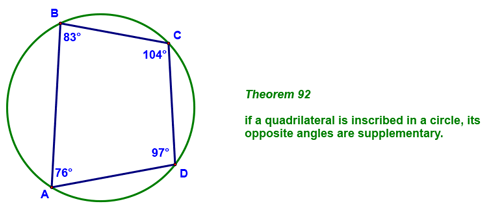

![Theorem 92 - Opposite Angles in an inscribed polygon](Theorem92.gif)

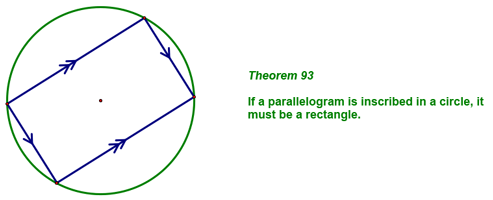

![Theorem 93 - Parallelograms inscribed in a circle](Theorem93.gif)
The following diagram should give you a "visual" of why Theorem 93 is true. Notice that when the parallelogram is no longer a rectangle, it is also no longer inscribed:
!["Visual" interpretation of Theorem 94](Theorem93VisualProof.gif)
|
